Any 317 Client - Anti Aliasing Tutorial

trees · December 28, 2019

A better guide for runesuite

This will add anti-aliasing feature to any 317 client, the naming may be different, thats up to you to sort.

Step 1: Mouse Click Area Fix

Search for 'l == 519' in client.java

int y;
int x;
	if (!this.menuOpen) {
		x = this.saveClickX - 4;
		y = this.saveClickY - 4;
	} else {
		x = j - 4;
		y = k - 4;
	}
	if (Configuration.anti_aliasing == true) {
		x <<= 1;
		y <<= 1;
	}
this.worldController.method312(y, x);

Step 2: Anti Aliasing Rendering 1/2

This is the hidden content, please

Search for 'method146'; Directly under 'int [] offsets = null'; Add the following

int[] offsets = null;

 if (Configuration.anti_aliasing == true) {
            Model.currentCursorX <<= 1;
            Model.currentCursorY <<= 1;
            WorldController.focalLength <<= 1;
            pixels = Rasterizer.pixels;
            Rasterizer.pixels = antialiasingPixels;
            offsets = Rasterizer.anIntArray1472;
            Rasterizer.anIntArray1472 = antialiasingOffsets;
            Rasterizer.bottomX <<= 1;
            Rasterizer.bottomY <<= 1;
            DrawingArea.width <<= 1;
            DrawingArea.height <<= 1;
            DrawingArea.centerX <<= 1;
            DrawingArea.centerY <<= 1;
            DrawingArea.anInt1387 <<= 1;
            Rasterizer.textureInt1 <<= 1;
            Rasterizer.textureInt2 <<= 1;
        }

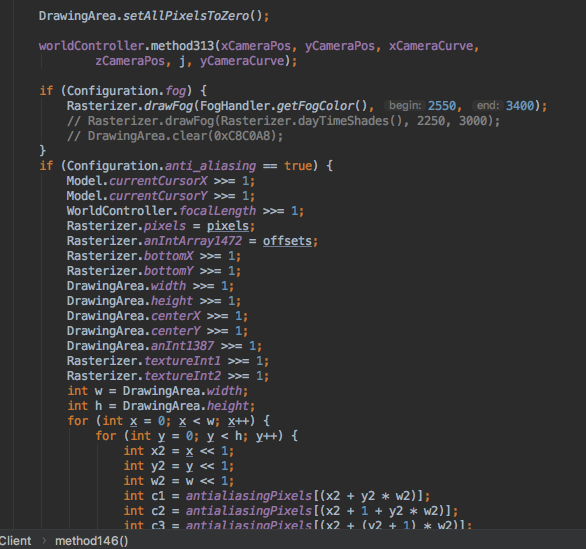

Step 3: Anti Aliasing Render 2/2

Directly under 'worldController.method313'; Add the following; Note if you have fog rendering, the fog rendering should be just above this new code your adding and under 'method313'

DrawingArea.setAllPixelsToZero();

worldController.method313(xCameraPos, yCameraPos, xCameraCurve,
        zCameraPos, j, yCameraCurve);

if (Configuration.anti_aliasing == true) {
            Model.currentCursorX >>= 1;
            Model.currentCursorY >>= 1;
            WorldController.focalLength >>= 1;
            Rasterizer.pixels = pixels;
            Rasterizer.anIntArray1472 = offsets;
            Rasterizer.bottomX >>= 1;
            Rasterizer.bottomY >>= 1;
            DrawingArea.width >>= 1;
            DrawingArea.height >>= 1;
            DrawingArea.centerX >>= 1;
            DrawingArea.centerY >>= 1;
            DrawingArea.anInt1387 >>= 1;
            Rasterizer.textureInt1 >>= 1;
            Rasterizer.textureInt2 >>= 1;
            int w = DrawingArea.width;
            int h = DrawingArea.height;
            for (int x = 0; x < w; x++) {
                for (int y = 0; y < h; y++) {
                    int x2 = x << 1;
                    int y2 = y << 1;
                    int w2 = w << 1;
                    int c1 = antialiasingPixels[(x2 + y2 * w2)];
                    int c2 = antialiasingPixels[(x2 + 1 + y2 * w2)];
                    int c3 = antialiasingPixels[(x2 + (y2 + 1) * w2)];
                    int c4 = antialiasingPixels[(x2 + 1 + (y2 + 1) * w2)];
                    int r = (c1 >> 16 & 0xFF) + (c2 >> 16 & 0xFF)
                            + (c3 >> 16 & 0xFF) + (c4 >> 16 & 0xFF) >> 2;
                    int g = (c1 >> 8 & 0xFF) + (c2 >> 8 & 0xFF)
                            + (c3 >> 8 & 0xFF) + (c4 >> 8 & 0xFF) >> 2;
                    int b = (c1 & 0xFF) + (c2 & 0xFF) + (c3 & 0xFF)
                            + (c4 & 0xFF) >> 2;
                    DrawingArea.pixels[(x + y * DrawingArea.width)] = (r << 16
                            | g << 8 | b);
                }
            }
        }

this code should all be followed with something that looks similar to the following, if you have done all that, congratulations! Make the 'Configuration.anti_aliasing' any boolean you please and test it out and continue below.

worldController.clearObj5Cache();
updateEntities();
drawHeadIcon();
method37(k2);
draw3dScreen();
aGraphicsBuffer_1165.drawGraphics(4, super.graphics, 4);
xCameraPos = l;
zCameraPos = i1;
yCameraPos = j1;
yCameraCurve = k1;
xCameraCurve = l1;

Grab a redbull, you'll need it.

Step 4: The world controller / game scene

Open your 'WorldController.java' (or 'Scene.java') Add and declare the following focalLength declarations anywhere (find below) and replace '>> 9' with the 'WorldController.focalLength' in the following methods; method311, method315, method 316;


	public static int focalLength = 512;

	static {
		focalLength = 512;
	}

The following will be my methods using the focalLength, which may vary from yours.

private static boolean method311(int i, int j, int k) {
   int l = j * anInt460 + k * anInt461 >> 16;
   int i1 = j * anInt461 - k * anInt460 >> 16;
   int j1 = i * anInt458 + i1 * anInt459 >> 16;
   int k1 = i * anInt459 - i1 * anInt458 >> 16;
   if (j1 < 50 || j1 > 3500)
      return false;
   int l1 = anInt493 + (l * WorldController.focalLength) / j1;
   int i2 = anInt494 + (k1 * WorldController.focalLength) / j1;
   return l1 >= anInt495 && l1 <= anInt497 && i2 >= anInt496
         && i2 <= anInt498;
}

private void method315(Class43 class43, int i, int j, int k, int l, int i1,
      int j1, int k1) {
   int l1;
   int i2 = l1 = (j1 << 7) - anInt455;
   int j2;
   int k2 = j2 = (k1 << 7) - anInt457;
   int l2;
   int i3 = l2 = i2 + 128;
   int j3;
   int k3 = j3 = k2 + 128;
   int l3 = anIntArrayArrayArray440[i][j1][k1] - anInt456;
   int i4 = anIntArrayArrayArray440[i][j1 + 1][k1] - anInt456;
   int j4 = anIntArrayArrayArray440[i][j1 + 1][k1 + 1] - anInt456;
   int k4 = anIntArrayArrayArray440[i][j1][k1 + 1] - anInt456;
   int l4 = k2 * l + i2 * i1 >> 16;
   k2 = k2 * i1 - i2 * l >> 16;
   i2 = l4;
   l4 = l3 * k - k2 * j >> 16;
   k2 = l3 * j + k2 * k >> 16;
   l3 = l4;
   if (k2 < 50)
      return;
   l4 = j2 * l + i3 * i1 >> 16;
   j2 = j2 * i1 - i3 * l >> 16;
   i3 = l4;
   l4 = i4 * k - j2 * j >> 16;
   j2 = i4 * j + j2 * k >> 16;
   i4 = l4;
   if (j2 < 50)
      return;
   l4 = k3 * l + l2 * i1 >> 16;
   k3 = k3 * i1 - l2 * l >> 16;
   l2 = l4;
   l4 = j4 * k - k3 * j >> 16;
   k3 = j4 * j + k3 * k >> 16;
   j4 = l4;
   if (k3 < 50)
      return;
   l4 = j3 * l + l1 * i1 >> 16;
   j3 = j3 * i1 - l1 * l >> 16;
   l1 = l4;
   l4 = k4 * k - j3 * j >> 16;
   j3 = k4 * j + j3 * k >> 16;
   k4 = l4;
   if (j3 < 50)
      return;
   int i5 = Rasterizer.textureInt1 + (i2 * WorldController.focalLength)
         / k2;
   int j5 = Rasterizer.textureInt2 + (l3 * WorldController.focalLength)
         / k2;
   int k5 = Rasterizer.textureInt1 + (i3 * WorldController.focalLength)
         / j2;
   int l5 = Rasterizer.textureInt2 + (i4 * WorldController.focalLength)
         / j2;
   int i6 = Rasterizer.textureInt1 + (l2 * WorldController.focalLength)
         / k3;
   int j6 = Rasterizer.textureInt2 + (j4 * WorldController.focalLength)
         / k3;
   int k6 = Rasterizer.textureInt1 + (l1 * WorldController.focalLength)
         / j3;
   int l6 = Rasterizer.textureInt2 + (k4 * WorldController.focalLength)
         / j3;
   Rasterizer.anInt1465 = 0;
   if ((i6 - k6) * (l5 - l6) - (j6 - l6) * (k5 - k6) > 0) {

private void method316(int i, int j, int k, ShapedTile shapedTile, int l,
      int i1, int j1) {
   int k1 = shapedTile.origVertexX.length;
   for (int l1 = 0; l1 < k1; l1++) {
      int i2 = shapedTile.origVertexX[l1] - anInt455;
      int k2 = shapedTile.origVertexY[l1] - anInt456;
      int i3 = shapedTile.origVertexZ[l1] - anInt457;
      int k3 = i3 * k + i2 * j1 >> 16;
      i3 = i3 * j1 - i2 * k >> 16;
      i2 = k3;
      k3 = k2 * l - i3 * j >> 16;
      i3 = k2 * j + i3 * l >> 16;
      k2 = k3;
      if (i3 < 50)
         return;
      if (Configuration.enableHDTextures
            || shapedTile.triangleTexture != null) {
         shapedTile.viewSpaceX[l1] = i2;
         shapedTile.viewSpaceY[l1] = k2;
         shapedTile.viewSpaceZ[l1] = i3;
      }
      shapedTile.screenX[l1] = Rasterizer.textureInt1
            + (i2 * WorldController.focalLength) / i3;
      shapedTile.screenY[l1] = Rasterizer.textureInt2
            + (k2 * WorldController.focalLength) / i3;
      shapedTile.viewSpaceZ[l1] = i3;

      shapedTile.viewSpaceZ[l1] = i3;
   }

   Rasterizer.anInt1465 = 0;
   k1 = shapedTile.triangleA.length;

Step 5: Some model fixes

Open 'Model.java' search for 'method443' (or 'renderAtPoint') and look around for some more of those '>> 9' and replace like we did before in 'method443'

The following will be my methods using the focalLength, which may vary from yours.

@Override
public final void method443(int i, int j, int k, int l, int i1, int j1,
      int k1, int l1, int i2) {
   int j2 = l1 * i1 - j1 * l >> 16;
   int k2 = k1 * j + j2 * k >> 16;
   int l2 = anInt1650 * k >> 16;
   int i3 = k2 + l2;
   if (i3 <= 50 || k2 >= 3500)
      return;
   int j3 = l1 * l + j1 * i1 >> 16;
   int k3 = (j3 - anInt1650) * WorldController.focalLength;
   if (k3 / i3 >= DrawingArea.centerY)
      return;
   int l3 = (j3 + anInt1650) * WorldController.focalLength;
   if (l3 / i3 <= -DrawingArea.centerY)
      return;
   int i4 = k1 * k - j2 * j >> 16;
   int j4 = anInt1650 * j >> 16;
   int k4 = (i4 + j4) * WorldController.focalLength;
   if (k4 / i3 <= -DrawingArea.anInt1387)
      return;
   int l4 = j4 + (super.modelHeight * k >> 16);
   int i5 = (i4 - l4) * WorldController.focalLength;
   if (i5 / i3 >= DrawingArea.anInt1387)
      return;
   int j5 = l2 + (super.modelHeight * j >> 16);
   boolean flag = false;
   if (k2 - j5 <= 50)
      flag = true;
   boolean flag1 = false;
   if (i2 > 0 && objectExists) {
      int k5 = k2 - l2;
      if (k5 <= 50)
         k5 = 50;
      if (j3 > 0) {
         k3 /= i3;
         l3 /= k5;
      } else {
         l3 /= i3;
         k3 /= k5;
      }
      if (i4 > 0) {
         i5 /= i3;
         k4 /= k5;
      } else {
         k4 /= i3;
         i5 /= k5;
      }
      int i6 = currentCursorX - Rasterizer.textureInt1;
      int k6 = currentCursorY - Rasterizer.textureInt2;
      if (i6 > k3 && i6 < l3 && k6 > i5 && k6 < k4)
         if (aBoolean1659)
            anIntArray1688[objectsRendered++] = i2;
         else
            flag1 = true;
   }
   int l5 = Rasterizer.textureInt1;
   int j6 = Rasterizer.textureInt2;
   int l6 = 0;
   int i7 = 0;
   if (i != 0) {
      l6 = SINE[i];
      i7 = COSINE[i];
   }
   for (int j7 = 0; j7 < numberOfVerticeCoordinates; j7++) {
      int k7 = verticesXCoordinate[j7];
      int l7 = verticesYCoordinate[j7];
      int i8 = verticesZCoordinate[j7];
      if (i != 0) {
         int j8 = i8 * l6 + k7 * i7 >> 16;
         i8 = i8 * i7 - k7 * l6 >> 16;
         k7 = j8;
      }
      k7 += j1;
      l7 += k1;
      i8 += l1;
      int k8 = i8 * l + k7 * i1 >> 16;
      i8 = i8 * i1 - k7 * l >> 16;
      k7 = k8;
      k8 = l7 * k - i8 * j >> 16;
      i8 = l7 * j + i8 * k >> 16;
      l7 = k8;
      anIntArray1667[j7] = i8 - k2;
      if (i8 >= 50) {
         projected_vertex_x[j7] = (l5 + k7 * WorldController.focalLength
               / i8);
         projected_vertex_y[j7] = (j6 + l7 * WorldController.focalLength
               / i8);
         if (Rasterizer.saveDepth) {
            vertexPerspectiveDepth[j7] = i8;
         }
      } else {
         projected_vertex_x[j7] = -5000;
         flag = true;
      }
      if (flag || numberOfTexturedFaces > 0) {
         camera_vertex_y[j7] = k7;
         camera_vertex_x[j7] = l7;
         camera_vertex_z[j7] = i8;
      }
   }

   try {
      method483(flag, flag1, i2);
      return;
   } catch (Exception _ex) {
      return;
   }
}

Yvnghills · April 30, 2020

Fxcking amazing, appreciate tha contribution lad

Origin · June 10, 2020

this was an intense read. appreciate the information

khepius · November 25, 2022

sasank

umix · June 11, 2023

Its cool to see how you set this code up. Thanks for sharing.

GodJesseJames · June 11, 2023

awesome

Juice2 · June 12, 2023

Thank you for this! 😍

Anežka · June 17, 2023

very nice

DruggedCamels · August 10, 2023

very nice

vaulkin · September 28, 2023

Ayo nice
